ESD Workstation Kits:. Dual Wire Constant Monitor, Wrist Strap, Grounding Hardware, and ESD Sign, TEC-TTB2A

ESD Workstation Kit - Dual Wire Constant Monitor - Wrist Strap - Grounding Hardware and ESD Sign - TEC-TTB2A

ESD KIT FEATURES
•  Complete ESD Workstation Kit
•  Monitors One Dual Wire Wrist Strap, and One Work Surface
•  Two Layer Rubber: Excellent Resistance to Hold Solders, Soldering Irons and Most Solvents
•  Includes Grounding Hardware and Wrist Strap
•  Kit Meets or Exceeds Requirements of ANSI ESD-S20.20

APPLICATIONS: Creates an ESD-Safe workstation for electronics repair, manufacturing, and more. ESD constant monitors reduce production costs by eliminating the time spent on testing wrist straps. Further savings may be realized by reduced ESD damage from broken wrist straps.

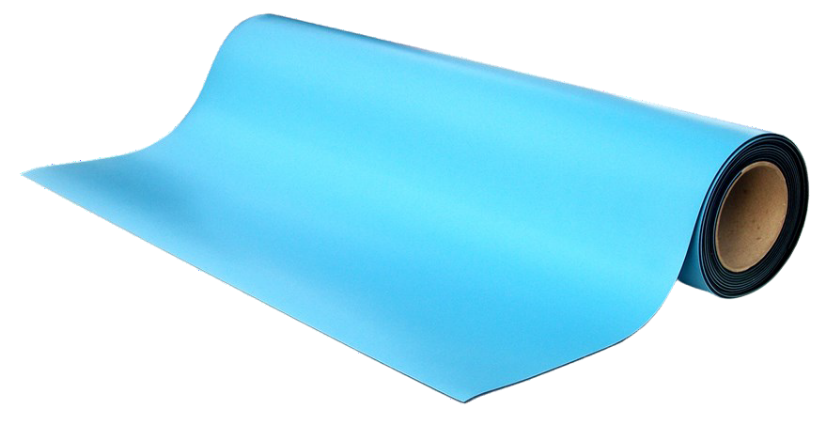

Work Surface
The 4500 series ESD control mats from Transforming Technologies are made of a durable 0.080”thick rubber. A conductive layer backs the static dissipative top layer that creates outstanding electrical performance. The 4500 series offers excellent resistance to hot solders, soldering irons and most solvents. Our cut mats are packaged individually with 10mm snaps and a common point ground cord. Available in NASA blue, royal blue, green and gray colors.

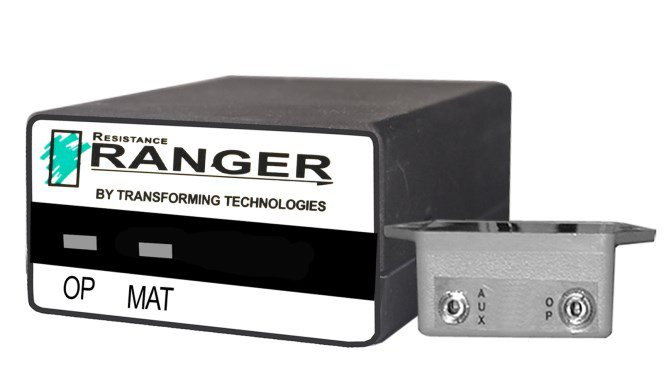

RangerTWO Dual Wire Constant Monitor
The RangerTWO constant monitor provides continuous protection against failing dual wire wrist straps and a ESD work surface. A constant pulse of an ultra-low voltage signal measures the electrical resistance of the wrist band and work surface and alarms if there is a problem. The RangerTWO saves time by eliminating the time consuming testing of grounding products. The system uses special dual wire wrist band sets that contain two independent elements which provide fail-safe protection. The series can be used with most common dual wire wrist straps available.

Grounding: Wrist Strap and Hardware
Each monitor uses a dual wire wrist strap sets such as the WB7000 from Transforming Technologies, although other compatible wrist strap sets may be substituted. Dual conductor wrist straps enable efficient, accurate resistance monitoring and grounding redundancy.

The one-size-fits-all WB7000 features a silver plated, monofilament, continuous thread woven together with elastic nylon for full conductivity and comfort. The CC3000’s double insulated jacket provides in-credible durability and unmatched reliability via a redundant grounding path.

Meets or exceeds ANSI/ESD-S20.20

Part Numbers:
TTB2A-23RB       Kit CM1602, Mat 2x3, WB7050, Sign, Hardware
TTB2A-24RB       Kit CM1602, Mat 2x4, WB7050, Sign, Hardware

Replace "RB" with "LB" for Light Blue, "GY" for Gray ang "GN" for Green

The ESD matting is rated to 190F (87C). The mats are heat resistant, not heat proof. They will withstand exposure to high temperatures, but it is dependent on exposure time.

Product Code: TTB2A   ESD Workstation Kits, Dual Wire Constant Monitor, Wrist Strap, Grounding Hardware, and ESD Sign, TTB2A.
