Particle Counters - Handheld - 0.1 CFM Flow Rate - 8 Channels - 0.3 - 10.0 Microns - ME-AEROCET-532
This particle monitor has been optimized in functionality and ease of use with a 2.8″ TFT full-color LCD display, making accurate measurement readings and operation more effortless than ever. Measuring both particle mass and particle count, this full-featured particle monitor is the perfect addition to any indoor air quality expert’s tool kit.
The Aerocet 532 simultaneously measures and records PM1, PM2.5, PM4, PM7, PM10, and total suspended particulate (TSP). Measurements are rapidly computed and totaled in as little as 60 seconds, recorded using an advanced profile algorithm. In addition to making mass measurements, the Aerocet 532 contains an 8-channel particle counter with a calibrated range of 0.3 to 10 microns.
An upgraded full-color LCD display makes measurement and selection effortless, supported by simple navigation. New features include an instrument wellness check, modifiable operating conditions, an internal toolbox, and last calibration date. The user may customize up to ten specific locations with alpha-numeric identification.
This rugged handheld device is constructed of an all-metal package coupled with an advanced user interface making it a first choice for professionals. The Aerocet 532 is designed for portable operation in difficult environments, with an internal battery life of 8 hours of continuous sampling.
Internal data storage allows for 15,000+ records of either mass measurements or particle counts, and complementary COMET software enables the user to easily download and analyze readings. Data outputs in a .CSV format.
HANDHELD PARTICLE COUNTER FEATURES:
Dimensions: Height = 8.8” (22.35 cm) Width = 3.75” (9.53 cm) Thickness = 2.25” (5.72 cm) (without rubber boot)
Weight: 1.0 lb., 13.5oz (0.84 kg)
TAILORED MASS COVERSION
The particle counts from this device are converted to mass using a proprietary algorithm for typical-density aerosols. Accommodation for special particulate with different densities is provided through user-programmable K factors.
FLEXIBLE DATA INTERFACES

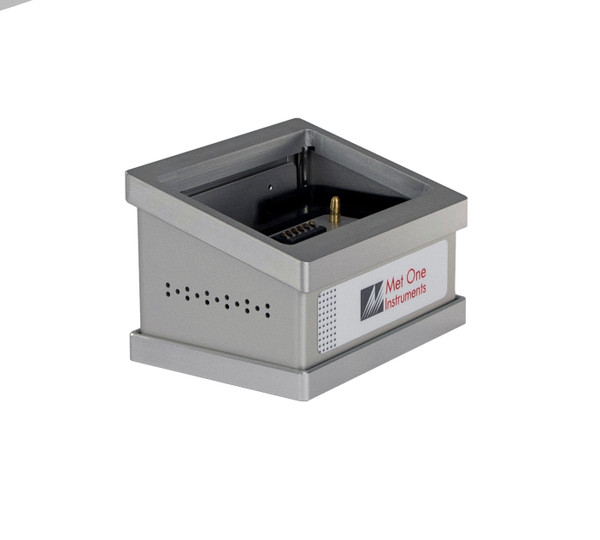

The Aerocet 532 stores over 6,000 data records which can be viewed on the large, color display, or transferred to a computer via USB. Met One’s COMET software makes file transfers easy with the capability to import sample data into an excel spreadsheet. Utilize the ALL-NEW optional docking station with WiFi, ethernet, and RS-485 connectivity for even easier data transfer.
RH & TEMPERATURE SENSOR
Equipped with an integrated relative humidity and temperature sensor, data reports automatically include these parameters.
USER INTERFACE
Tactile navigation has been streamlined with a ‘Start/Stop’ button, a ‘Menu/Escape’ button, and a ‘Press/Select’ rotary knob for scrolling that doubles as a selection switch when pressed. The result is a faster, more intuitive interface.
|
HANDHELD PARTICLE COUNTER SPECIFICTATIONS ME-AEROCET-532 |
|
|
MASS MODE |
|
|
Mass Concentration |
PM1, PM2.5, PM4, PM7, PM10, and TSP |
|
Ranges Sensitivity |
0.3µm |
|
Concentration Limit |
0 – 1,000 µg/m3 |
|
Sample Time |
1, 2, 5, 10, 15, 30 or 60 minutes |
|
PARTICLE COUNT MODE |
|
|
Concentration Range |
0 – 3,000,000 particles per cubic foot (105,900 particles/L) |
|
Sample Time |
1, 2, 5, 10, 15, 30 or 60 minutes |
|
Size Accuracy Sensitivity |
+/- 10% to calibration aerosol |
|
Particle Size Range: |
0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 4.0 µm, 5.0 µm, 7.0 µm and 10 µm |
|
Flow Rate: |
0.1 cfm (2.83 lpm) |
|
ELECTRICAL |
|
|
Light Source |
Laser Diode, 90mW, 780 nm |
|
Battery Pack |
7.4V Li-ion battery pack |
|
Battery Life |
8 hours continuous operation |
|
AC Adapter/Charger |
Li-ion battery charger, 100-240 VAC, 50/60Hz |
|
Communications |
USB-C Serial; With Optional Docking Station, RS-485, WiFi, & Ethernet |
|
Certifications |
Meets or exceeds CE, ISO 21501-4 (with ISO Calibration) |
|
INTERFACE |
|
|
Display/ Keyboard |
2.8 inch TFT full-color LCD / 2-button membrane keypad with rotary dial |
|
PHYSICAL |
|
|
Height, Width, Depth |
Height = 8.8” (22.35 cm) Width = 3.75” (9.53 cm) Thickness = 2.25” (5.72 cm) (without rubber boot) |
|
Weight |
1.0 lb., 13.5oz (0.84 kg) |
|
ENVIRONMENTAL |
|
| Operating Temperature | 0º C to +50º C º |
| Storage Temperature | -20 C to +60º C |
| Relative Humidity Storage | <95% (non-condensing) |
ACCESSORIES SUPPLIED
• Operation Manual

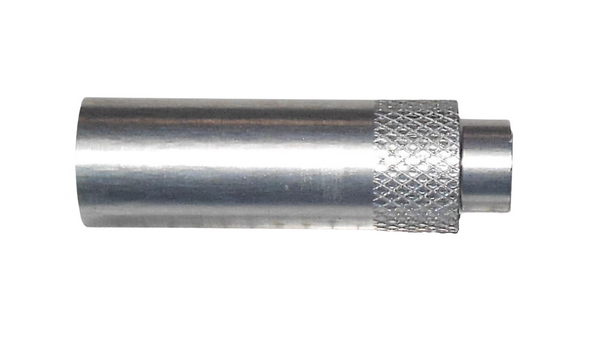

• Isokinetic Sample Inlet
• EVA Carrying Case
• USB Cable
• Zero Particulate Filter
• Calibration Certificate
• RH & Temperature Probe
• Rubber Boot
• Comet Software

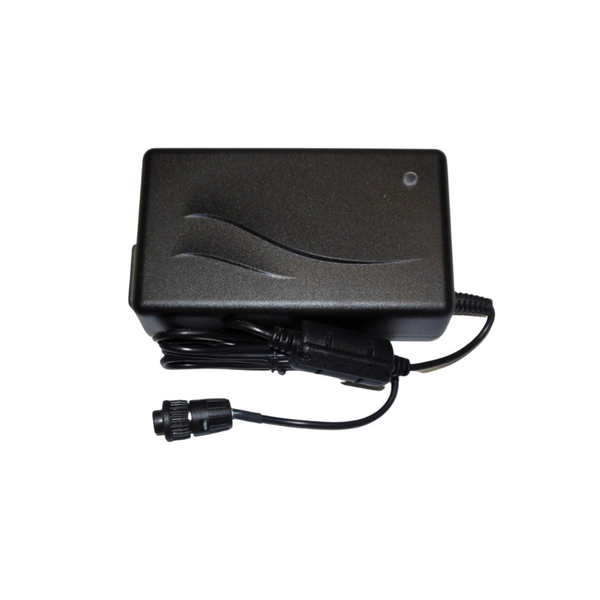

• AC Adapter/Battery Charger
ACCEPTABLE APPLICATIONS
• Indoor Air Quality Monitoring
• Industrial Hygiene
• Industrial Facility & Process Monitoring
• QA Programs
• Schools
• Industrial/Occupational Hygiene
Call to find out if discounted pricing is available.
Product Code: ME-AEROCET-532 - Particle Counters, Handheld, 0.1 CFM Flow Rate, 8 Channels, 0.3 - 10.0 Microns.
ORDER PARTICLE COUNTERS
To order the particle counters, click tab above, email sale@kfqizhongji.com, or call customer service at (303)752-0076.
Shipping Instructions: The particle counters can ship via UPS or FedEx. The order ships collect or prepay and add to the invoice. If shipping collect, add your freight account number in the “Comments Box” when checking out. Customer is responsible for the freight charge.
