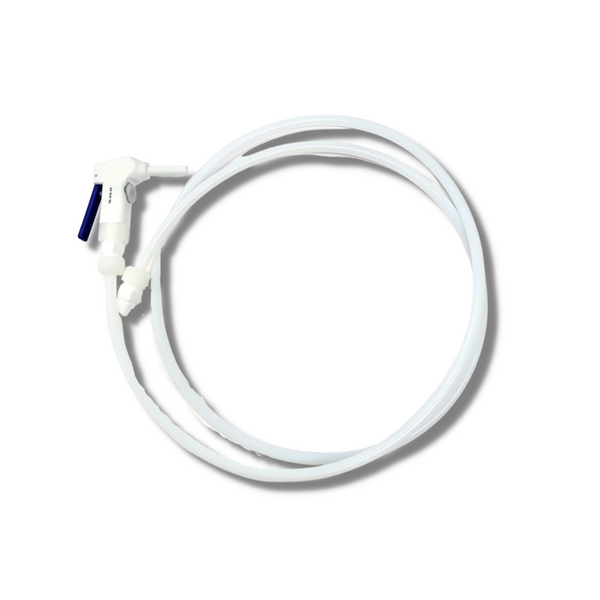

Recirculating Spray Guns: Hose Assemblies; 1/2" FNPT Inlet Thread, 3/8" OD FEP Coiled Tubing TA-RC-106

Recirculating Spray Gun -  Gun & Hose Assembly - 1/2" FNPT Inlet Thread - 3/8" OD FEP Coiled Tubing   TA-RC-106

The recirculating spray gun has a fluid path free of all undesirables such as o-rings, o-ring lubricants, metal springs or porous materials. The DI gun itself and all component parts coming into contact with the fluid are fabricated from high density TFE PTFE for total purity. There are no materials or objects in the fluid path to allow contamination.  There is true re circulation when DI water enters the Recirc it travels up the “pressure” orifice into the point-of-use spray head chamber. Upon arrival and if the recirc is not in use Dl water will travel back down the parallel “re circulation” orifice and eventually discharge to users Dl recovery or drain.  By travelling this path bacterial growth is virtually eliminated as true re circulation exists.

Recirculating DI spray guns all have molded PTFE bodies with PVDF pistons. These DI Spray guns are designed so that there is very little dead space for bacteria to grow. DI water is able to circulate up to the sealing seat through out the entire gun and piston. From the sealing seat on, bacteria build up is kept to a minimum by using a 1/16" thick spray nozzle.

RECIRCULATING SPRAY GUN SPECIFICATIONS
• Maximum operating pressure:  75 psi
• Temperature range:  40ºF - 130°F
• Hand held
• PTFE and polyurethane
• PTFE fluid path
• Size: 2.5"W x 3.9"H

Product Code: TA-RC-106   Recirculating Spray Guns, 1/2" FNPT Inlet Thread, 3/8" OD FEP Coiled Tubing with PTFE fittings and PTFE recirculating tube

For more options, visit our main section for recirculating spray guns for cleanrooms.

For more options check out our large selection of DI water spray guns.

ORDER RECIRCULATING SPRAY GUNS
To order the recirculating spray guns, click tab above, call customer service at (303)752-0076, or email sale@kfqizhongji.com.

Shipping Instructions: The recirculating spray guns can ship via UPS or FedEx. The order ships collect or prepay and add to the invoice. If shipping collect, add your freight account number in the “Comments Box” when checking out. Customer is responsible for the freight charge.

In addition to recirculating spray guns, we also offer a variety of nitrogen spray guns.
